EPROM/ROM-Based 8-Bit Microcontroller Series CX8PE54 CX8PE56family of low-cost, high speed, high noise immunity, EPROM/ROM-based 8-bit CMOS microcontrollers

   产品概述 返回TOP5sI嘉泰姆

The CX8PE54/CX8PE56 series is a family of low-cost, high speed, high noise immunity, EPROM/ROM-based 8-bit CMOS microcontrollers. It employs a RISC architecture with only 42 instructions. All instructions are single cycle except for program branches which take two cycles. The easy to use and easy to remember instruction set reduces develoCXent time significantly. The FM8PE54/E56 series consists of Power-on Reset (POR), Brown-out Reset (BOR), Power-up Reset Timer (PWRT), Oscillator Start-up Timer(OST), Watchdog Timer, EPROM/ROM, SRAM, tri-state I/O port, I/O pull-high/open-drain/pull-down control, Power saving SLEEP mode, real time programmable clock/counter, Interrupt, Wake-up from SLEEP mode, and Code Protection for EPROM products. There are three oscillator configurations to choose from, including the power-saving LP (Low Power) oscillator and cost saving RC oscillator. The FM8PE54/E54E address 512×13 of program memory, and the FM8PE56/E56E address 1K×13 of program memory. The FM8PE54/E56 can directly or indirectly address its register files and data memory. All special function registers including the program counter are mapped in the data memory.

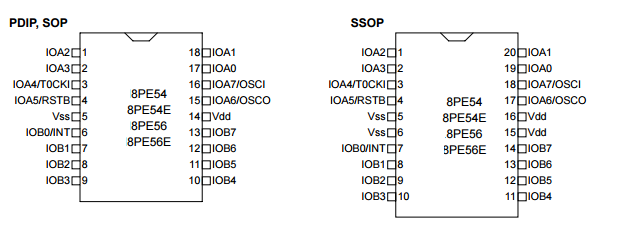

   产品特点 返回TOP5sI嘉泰姆

  ‧ Direct, indirect addressing modes for data accessing 5sI嘉泰姆

‧ 8-bit real time clock/counter (Timer0) with 8-bit programmable prescaler 5sI嘉泰姆

‧ Internal Power-on Reset (POR)5sI嘉泰姆

 ‧ Built-in Low Voltage Detector (LVD) for Brown-out Reset (BOR) 5sI嘉泰姆

‧ Power-up Reset Timer (PWRT) and Oscillator Start-up Timer(OST) 5sI嘉泰姆

‧ On chip Watchdog Timer (WDT) with internal oscillator for reliable operation and soft-ware watch-dog enable/disable control 5sI嘉泰姆

‧ Two I/O ports IOA and IOB with independent direction control (maximum 16 I/O pins) 5sI嘉泰姆

‧ Soft-ware I/O pull-high/pull-down or open-drain control 5sI嘉泰姆

‧ One internal interrupt source: Timer0 overflow; Two external interrupt source: INT pin, Port B input change 5sI嘉泰姆

‧ Wake-up from SLEEP by INT pin or Port B input change 5sI嘉泰姆

‧ Power saving SLEEP mode 5sI嘉泰姆

‧ Built-in 8MHz, 4MHz, 1MHz, and 455KHz internal RC oscillator 5sI嘉泰姆

‧ Programmable Code Protection 5sI嘉泰姆

‧ Selectable oscillator options: 5sI嘉泰姆

- ERC: External Resistor/Capacitor Oscillator 5sI嘉泰姆

- HF: High Frequency Crystal/Resonator Oscillator 5sI嘉泰姆

- XT: Crystal/Resonator Oscillator 5sI嘉泰姆

- LF: Low Frequency Crystal Oscillator 5sI嘉泰姆

- IRC: Internal Resistor/Capacitor Oscillator 5sI嘉泰姆

- ERIC: External Resistor/Internal Capacitor Oscillator 5sI嘉泰姆

‧ Wide-operating voltage range: 5sI嘉泰姆

- EPROM : 2.3V to 5.5V 5sI嘉泰姆

- ROM : 2.3V to 5.5V5sI嘉泰姆

   应用范围 返回TOP5sI嘉泰姆

   a5sI嘉泰姆

   技术规格书（产品PDF) 返回TOP 5sI嘉泰姆

     需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>
