English340KHz, 2A, Asynchronous Step-Down RegulatorJTFP6115 is a buck switching regulator for wide operating voltage application fields,includes a high current P-MOSFET, a high precision reference (0.8V) for
目录
1.产品概述 2.产品特点 3.应用范围 4.技术规格书下载（PDF文档）</span>

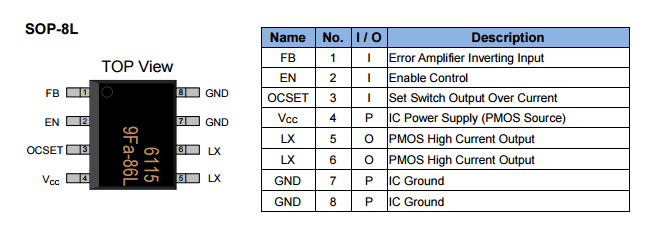

5.产品封装 6.电路原理图</strong> 7.相关产品
The JTFP6115 is a buck switching regulator for wide operating voltage application fields. The JTFP6115 includes a high current P-MOSFET, a high precision reference (0.8V) for comparing output voltage with a feedback amplifier, an internal soft start timer and dead-time controller. The oscillator is for controlling the maximum duty cycle and PWM frequency.
˙Precision Feedback Reference Voltage: 0.8V (2%)
˙Wide Supply Voltage Operating Range: 3.6 to 23V
˙Low Current Consumption: 3mA
˙Internal Fixed Oscillator Frequency: 340KHz (Typ.)
˙Internal Soft-Start Function (SS)
˙Built-In P-MOSFET for 2A Output Loading
˙Over Current Protection
˙Package: SOP-8L
电源管理
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>
>>NON-SYNCHRONOUS STEP-DOWN (BUCK) CONVERTERS | ||||||||||
Part No. | VIN(Min) | VIN(Max) | Load | ISW Limit | Feedback | Switching | Soft Start | Notes | Package | Status |
(V) | (V) | Current(A) | (Typ)(A) | Voltage(V) | Frequency | |||||
(kHz) | ||||||||||
JTFP6101 | 3.6 | 20 | 2 | 3 | 0.5 | 340 | External | External Comp | SOP8 | MP |
JTFP6102 | 3.6 | 20 | 3 | 4 | 0.5 | 340 | External | External Comp | SOP8 | MP |
JTFP6111 | 3.6 | 25 | 2 | 3 | 0.8 | 320 | Internal | External Comp | SOP8 | MP |
JTFP6112 | 3.6 | 25 | 3 | 4 | 0.8 | 320 | Internal | External Comp | SOP8 | MP |
JTFP6115 | 3.6 | 25 | 2 | adjust | 0.8 | 340 | Internal | External Comp | SOP8 | MP |
JTFP6116 | 3.6 | 25 | 3 | adjust | 0.8 | 340 | Internal | External Comp | SOP8 | MP |
JTFP6180 | 4.75 | 23 | 3 | 5.5 | 1.222 | 380 | External | External Comp | SOP8 SOP8E | MP |
JTFP6181 | 4.75 | 23 | 2 | 3.4 | 0.92 | 380 | External | External Comp | MSOP10 | MP |
JTFP6182 | 4.75 | 23 | 2 | 3.4 | 1.222 | 380 | External Comp | SOP8 | MP | |
JTFP6185 | 4.75 | 23 | 2 | 3.4 | 0.92 | 380 | External | External Comp | SOP8 | MP |
JTFP6186 | 4.75 | 23 | 2 | 3.5 | 0.92 | 1400 | External | External Comp | SOP8E MSOP10E | MP |
