3A Bipolar Linear Regulator CXLD6493，双极型低压差线性稳压器，voltage versions (1.8V, 2.5V,3.3V, 5.0V)，Bipolar, Low Dropout Voltage

目录A5K嘉泰姆

1.产品概述       2.产品特点     3.应用范围      4.技术规格书下载（产品PDF文档）
5.产品封装图</span>   6.电路原理图</span>  7.功能概述      8.相关产品A5K嘉泰姆

一,产品概述(General Description)      A5K嘉泰姆

    CXLD6493 is a series of low dropout three terminal regulators with a typical dropoutA5K嘉泰姆

voltage of 1.4V at 3A load current.Other than fixed voltage versions (1.8V, 2.5V,3.3V, 5.0V),A5K嘉泰姆

 CXLD6493 has an adjustable voltage version, with which desired voltage can be achieved A5K嘉泰姆

by setting the values of two external resistors of the application circuitry.CXLD6493 offersA5K嘉泰姆

 thermal shut down and current limit functions to assure the stability of chip and power system.A5K嘉泰姆

      CXLD6493 series is available in standard packages of TO-263-2L, TO-263-3L, TO-220A5K嘉泰姆

and TO-252.A5K嘉泰姆

二</span>.产品特点(Features)
A5K嘉泰姆

Fixed and adjustable versions.A5K嘉泰姆

Maximum output current : 3AA5K嘉泰姆

Maximum input voltage: 15VA5K嘉泰姆

Line regulation: 0.2％</span> (Typical)A5K嘉泰姆

Load regulation: 0.2％</span> (Typical)A5K嘉泰姆

On-Chip Thermal ShutdownA5K嘉泰姆

Operation environment Temperature: -10℃</span>~ 85℃</span>A5K嘉泰姆

三</span>,应用范围 (Applications)
A5K嘉泰姆

Power Management for Computer MotherA5K嘉泰姆

Board, Graphic CardA5K嘉泰姆

Battery ChargerA5K嘉泰姆

Post Regulators for Switching SuppliesA5K嘉泰姆

Microprocessor SupplyA5K嘉泰姆

四.技术规格书下载（产品PDF）</span>
A5K嘉泰姆

需要详细的PDF规格书请扫一扫微信联系我们</span>A5K嘉泰姆

                        A5K嘉泰姆

五</span>,产品封装图 (Package)
A5K嘉泰姆

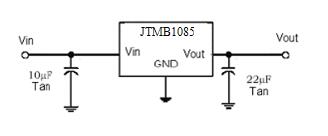

六</span>.电路原理图</span>A5K嘉泰姆

A5K嘉泰姆
