JTMH7501CS-Li-Ion Battery Powered Mobile Supply

Features

Ø  High Accuracy Linear Li-Lon Battery Chargersml嘉泰姆

Ø  Programmable Charge Current up to 1Asml嘉泰姆

Ø  Fixed Output Voltage: 5Vsml嘉泰姆

Ø  Input Voltage: up to 6V with Suitable MOSFET and Charging Currentsml嘉泰姆

Ø  STAT1, STAT2, STAT3, STAT4 Pins: Charging Status Indicators or Indicate the Capacity of Battery when Step-upsml嘉泰姆

Ø  Flashlight Function with Sink Current up to 35mAsml嘉泰姆

Ø  Short-Circuit Protectionsml嘉泰姆

Ø  Shutdown Step-up if No-Loadsml嘉泰姆

Ø  Minimal External Componentssml嘉泰姆

Ø  TSSOP-16L(JTMH7501C)/SOP-16(JTMH7501S) Packagesml嘉泰姆

Description

The JTMH7501 is a complete, cost effective, high- efficient solution for Li-Ion Battery Powered Mobile Supply.sml嘉泰姆

VBAT is a complete constant-current/constant voltage linear charger for one cell lithium-ion battery. The charge current of pre-charging and constant–current charging is adjustable and it can be programmed to 1A. An external sense resistor sets the charge current with high accuracy.sml嘉泰姆

VOUT5 (5V) is a step-up DC/DC converter with internal power MOSFETs. It achieves 2A (with 2318 NMOSFET) continuous output current over a wide input supply range with excellent load and line regulation. In addition, the JTMH7501 can be used as a flashlight.sml嘉泰姆

The JTMH7501C is available in a low profile TSSOP-16L package and The JTMH7501S is available in a low profile SOP-16 package.sml嘉泰姆

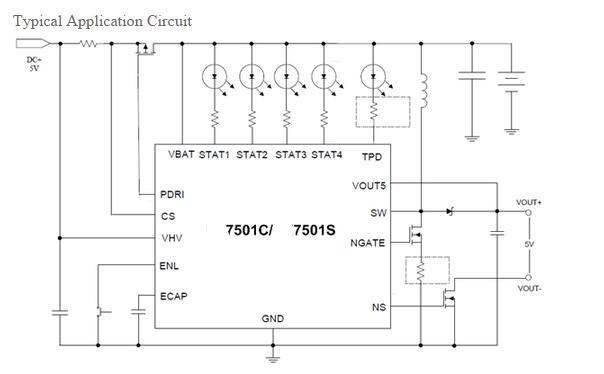

Applications

Ø  Portable Devices and PDAssml嘉泰姆

Ø  MP3/MP4 Playerssml嘉泰姆

Ø  Wireless Handheldssml嘉泰姆

Ø  GPS Receivers, etc.sml嘉泰姆
