   产品概述 返回TOPXLR嘉泰姆

The CXSU63212 is a compact, high-efficiency, synchronous step-up converter with power MOSFETs integrated for a single-cell Li-ion/polymer battery. This converter consumes only 100uA quiescent current when no switching. When current load is light, this converter enters burst mode to obtain high efficiency. When current load is heavy enough, it enters fixed-frequency PWM mode. It adopts peak current mode for fast transient response with internal compensation. This converter contains cycle-by-cycle current limiting and short protection circuit. It is suitable for iPad-like computers, smart phones and portable handheld devices. The device is packed in PSOP8 package.

   产品特点 返回TOPXLR嘉泰姆

·Wide input range: 2.6-5V input, 1.2A @5V Vout XLR嘉泰姆

· 1MHz switching frequency XLR嘉泰姆

· Low RDS(ON): 110mΩ@5V NMOS and 150mΩ@5V PMOS XLR嘉泰姆

· Up to 93% efficiency XLR嘉泰姆

· Accurate Reference: 0.6V Reference XLR嘉泰姆

· Under-Voltage lockout Protection XLR嘉泰姆

· Over-Temperature ProtectionXLR嘉泰姆

· Short Protection XLR嘉泰姆

· Internal Soft Start XLR嘉泰姆

· 1uA Shutdown current XLR嘉泰姆

· RoHS Compliant and Halogen Free XLR嘉泰姆

· Compact package: PSOP8XLR嘉泰姆

   应用范围 返回TOPXLR嘉泰姆

·IPad- like tablet computersXLR嘉泰姆

·Smart phones XLR嘉泰姆

· Other portable devicesXLR嘉泰姆

   技术规格书（产品PDF) 返回TOP XLR嘉泰姆

     需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！XLR嘉泰姆

 XLR嘉泰姆

产品封装图 返回TOPXLR嘉泰姆

XLR嘉泰姆

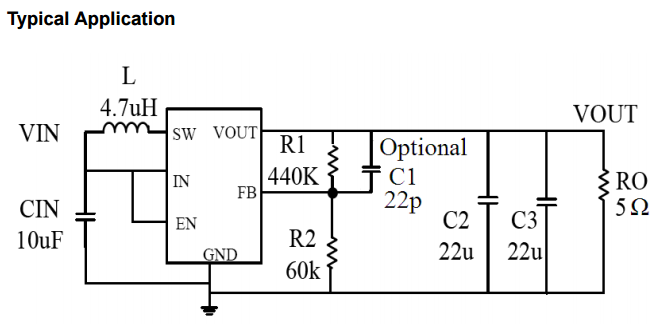

电路原理图 返回TOPXLR嘉泰姆

 XLR嘉泰姆

 XLR嘉泰姆

相关芯片选择指南 返回TOP                           更多同类产品......

 XLR嘉泰姆
