CXSD6112是来自高压输入电源的宽输入范围降压DC/DC转换器。使用输入电压范围8V～30V，连续输出电流3.5A，负载和线路优良监管。同步架构提供了高效的设计。恒流恒压模式操作提供快速的瞬态响应并简化回路稳定。
-
"
目录
7.相关产品
产品概述 返回TOP
The CXSD6112 is a wide input range step down DC/DC converter from a high voltage input supply. Operating with an
input voltage range of 8V ～ 30V, the CXSD6112 achieves 3.5A continuous output current with excellent load and line
regulation. The synchronous architecture provides for highly efficient designs. Constant current and constant voltage
mode operation provide fast transient response and eases loop stabilization.
The CXSD6112 features a dual-channeling CV/CC mode control functions. It operates in the Constant output Current
mode or Constant output Voltage mode. The over current protection current value is set by current sensing resisters.
The CXSD6112 requires a minimum number of readily available standard external components. Other features include
cable drop compensation, and thermal shutdown.
The CXSD6112 converter is available in the industry standard SOP8-PP packages.
产品特点 返回TOP
Ø Wide Input Voltage Range: 8V ～ 30V
Ø Up to 93% Efficiency
Ø No Loop Compensation Required
Ø Dual-channeling CC/CV control
Ø Cable drop Compensation from 0Ω to 0.3Ω
Ø Programmable CC Current
Ø Thermal Shutdown
Ø Over current protection
Ø ULVO protection
Ø Available in SOP8-PP Package
应用范围 返回TOP
Ø Car Charger / Adaptor
Ø LED Driver
Ø Pre-Regulator for Linear Regulators
Ø Distributed Power Systems
Ø Battery Charger
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！
产品封装图 返回TOP

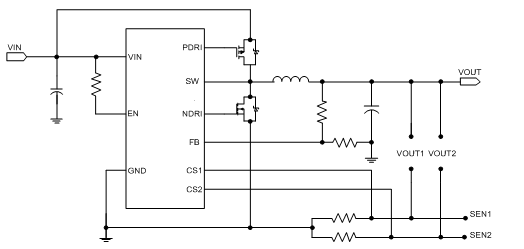

电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
